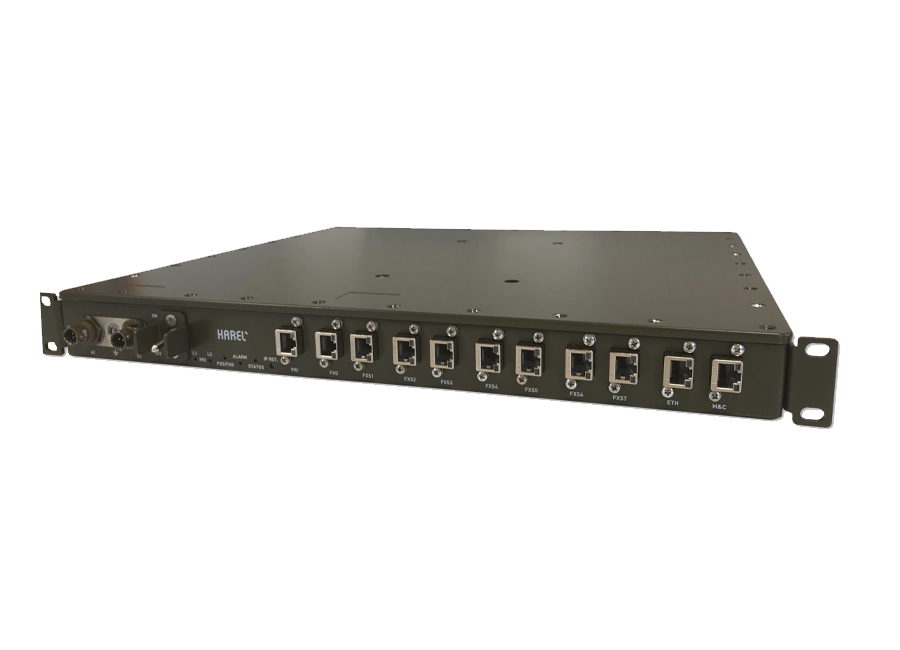

The AG102 Military Gateway (Voice over IP) receives data from user terminals through analog, CO and ISDN PRI interfaces, converts and combines it into Ethernet/IP data and transmits it through a single port. It also distributes data from a single port to other interfaces (analog, CO and ISDN PRI). All parameters of the AG102 can be managed via the web interface.
Functional Specifications
• Ability to control and monitor all device parameters via SNMP.
• All device parameters can be managed via web.
• IPV4 and IPV6 support.
• The device is equipped with 7 (seven) FXS and (one) FXO port
• The device is developed with the ability to connect to an analog phone device, a secure phone MİLSEC-1A and a secure/ insecure fax machine.
• The device is equipped with 1 (one) ISDN PRI interface.
• The device is equipped with 2 (two) Ethernet interfaces, one for data (carrier interface) other for management.
• The Ethernet interface supports a speed of 10/100 Mbit.
• The ports installed on the device can be independently configured and managed.
• Interface of the device for control and monitoring enables to select the language mode (Turkish and English).
• The device's audio interfaces support audio codex such as G.711, G.723, G.726 and G.729.
• The analog audio interface of the device operates in compatibility with the encrypted audio communication device MILSEC-1A.
• The device has a self-test function (CIT tests) to detect malfunctions and monitor the unit functions of the device.
AG102 [.pdf]
