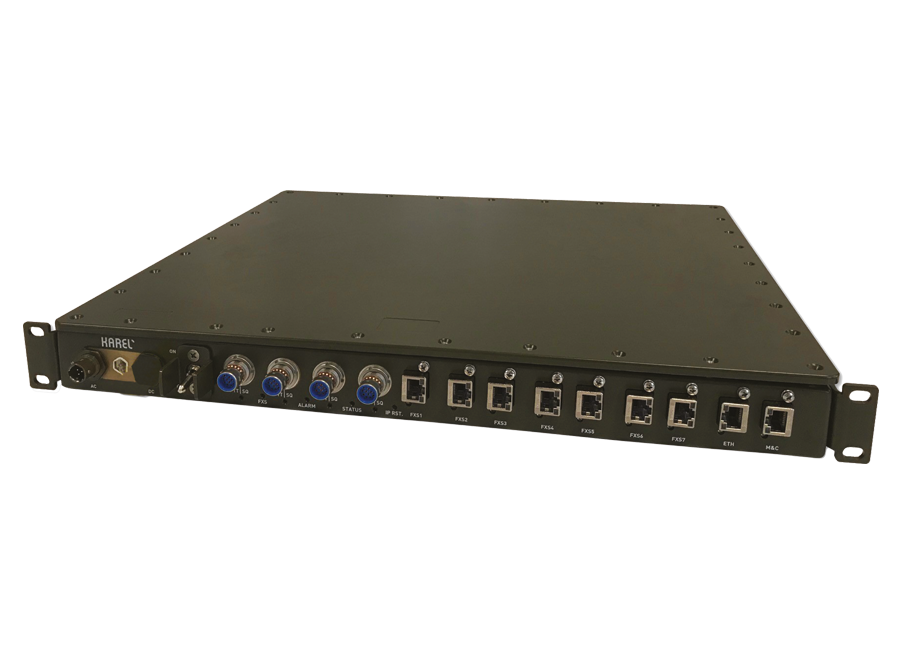

The TAG102 Gateway (Radio over IP) can convert the radios connected to it into IP data and transmit it to Ethernet networks via IP ports. It makes an important contribution to IP communications in the tactical field by connecting to satellite or ethernet networks.
Functional Properties
• Ability to control all device parameters via SNMP and web
• All device parameters can be managed via web.
• Supports IPV4 and IPV6.
• Equipped with 14 units FXS analog audio interface.
• Supports 4 units radio interface
• Supports on radio connection interface balance and unbalance connection types and various impedances.
• Push-to-talk over IP networks.
• Activation options of VOX and MF for PTT.T
• The device is structured with the ability to connect to an analog phone, a secure phone MILSEC-1A and secure/ insecure fax machine.
• The device is equipped with 2 (two) Ethernet interfaces, one for data (mover interface) and one for management. The Ethernet interface supports 10/100 Mbit.
• The ports installed on the device can be independently configure and manage
• Interface of the device for control and monitoring enables to select the language mode Turkish or English.
• The device's audio interfaces support audio codex such as G.711, G.723 and G.729. Has the ability to work audio codex in compatibility with the Audio Server and other Gateway devices.
• The analog audio interface of the device operates in compatibility with the encrypted audio communication device MILSEC-1A.
• The device has a self-test function (CIT tests) to detect malfunctions and control the unit functions.
TAG102 [.pdf]
