IP214G IP Phone

image title

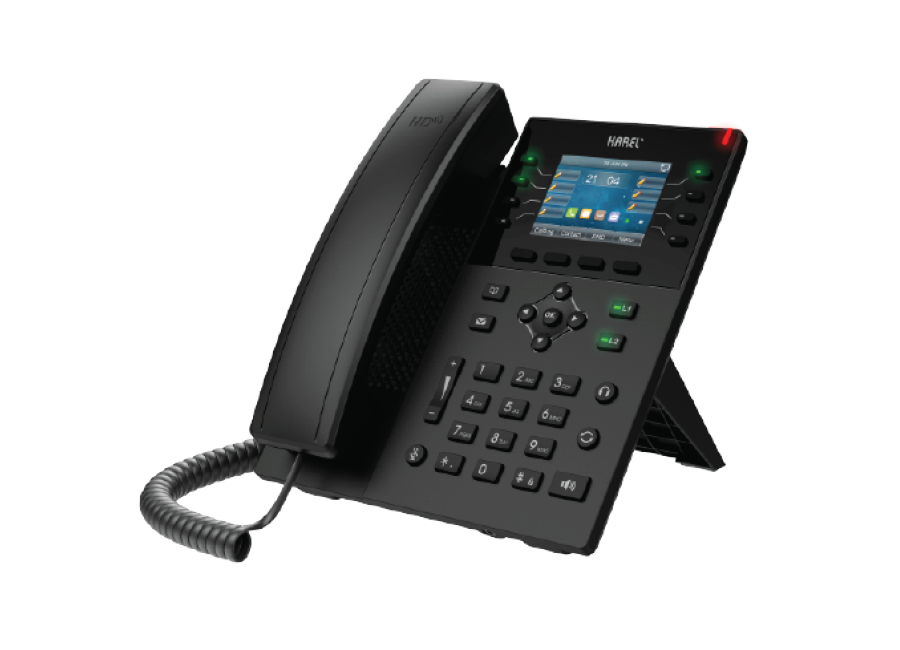

IP214G IP Phone

Karel IP214G IP Phone, which is SIP compatible and works with Karel IP switchboards, stands out with its simple and user-friendly interface and advanced features. It can be used with 12 different VoIP accounts as well as triple conferencing. In this way, it enables you to advance communication processes in business life in a fast, practical and efficient way.
Offering uninterrupted communication from any point with Internet access, Karel IP214G is designed using a 2.8-inch color LCD screen. The device can establish a Wi-Fi connection through the apparatus and can be used with wired or Bluetooth headphones. 2x Gigabit LAN ports and PoE support.

image title

İnternet erişimi olan her noktadan kesintisiz iletişim sunan Karel IP214G 2,8 inç boyutunda renkli LCD ekran kullanılarak tasarlanmıştır. Aparat aracılığıyla Wi-Fi bağlantısı kurabilen cihaz, kablolu ya da Bluetooth kulaklıkla kullanılabilir. 2x Gigabit LAN portuna ve PoE desteğine sahiptir.

  • Features

    • Generic

      • 12 SIP Lines

      • HD Voice

      • PoE Enabled

      • 2.8-inch color screen

      • Handset / Hands-free / Headset mode

      • Desktop Stand / Wall-mounted (need an additional wall hanging parts)

      • Optional External Power Supply

      Phone Functions

      • Local Phonebook (1000 entries)

      • Remote Phonebook (XML/LDAP, 1000 entries)

      • Call logs (In/Out/Missed, 1000 entries)

      • Black/White List Call Filter

      • Screen saver

      • Voice Message Waiting Indication (VMWI)

      • Programmable Soft keys

      • Network Time Synchronization

      • Built-in Bluetooth 2.1: Support Bluetooth headset

      • Support Wi-Fi Dongle

      • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)

      • Support Jabra wireless headset (Through EHS20 EHS Cable)

      • Action URL / Active URI

      • uaCSTA

      Call Functions

      • Call out / Answer / Reject

      • Mute / Unmute (Microphone)

      • Call Hold / Resume

      • Call Waiting

      • Intercom

      • Caller ID Display

      • Anonymous Call (Hide Caller ID)

      • Call Forward (Always/Busy/No Answer)

      • Call Transfer (Attended/Unattended)

      • Call Parking/Pick-up (Depending on server)

      • Redial

      • Do-Not-Disturb

      • Auto-Answering

      • Voice Message (With server)

      • 3-way Conference

      • Hot Line

      • Hot desking

      Audio

      • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)

      • Wideband ADC/DAC 16KHz Sampling

      • Narrowband Codec: G.711a/u, G723.1, G.726-32K, G.729A, iLBC

      • Wideband Codec: G.722, AMR-WB, Opus

      • Full-duplex Acoustic Echo Canceller (AEC)

      • Voice Activity Detection (VAD) / Comfort, Noise Generation (CNG) / Background, Noise Estimation (BNE) / Noise, Reduction (NR)

      • Packet Loss Concealment (PLC)

      • Dynamic Adaptive Jitter Buffer

      • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

  • Technical Features

    • Network

      • Physical: 10/100/1000Mbps Ethernet, dual bridged port for PC bypass

      • IP Mode:IPv4/IPv6/IPv4&IPv6

      • IP Configuration: Static IP / DHCP / PPPoE

      • Network Access Control: 802.1x

      • VPN: L2TP / OpenVPN

      • VLAN

      • LLDP

      • QoS

      • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

      Protocols

      • SIP2.0 over UDP/TCP/TLS

      • RTP/RTCP/SRTP

      • STUN

      • DHCP

      • IPv6

      • LLDP

      • PPPoE

      • 802.1x

      • L2TP

      • OpenVPN

      • SNTP

      • FTP/TFTP

      • HTTP/HTTPS

      • TR-069

      Deployment & Management

      • Auto-Provisioning via FTP / TFTP / HTTP / HTTPS/DHCP OPT66/SIP PNP/TR-069

      • Web Management Portal

      • Web-based Packet Dump

      • Configuration Export / Import

      • Phonebook Import/Export

      • Firmware Upgrade

      • Syslog

      Physical Specifications

      • LCD : 2.8-inch (320x240) Color Screen

      • Keypad: 39 keys, including

      - 7 keys, 5 page view can be programmed up to 35 paperless DSS (With LED Indicator Light)

      - 1 Page-Switch (PS) key

      - 4 Soft-keys

      - 4 Function keys (Phonebook, MWI, Headset, Redial)

      - 4 Navigation keys

      - 2 Line keys (With LED Indicator Light)

      - 1 OK key

      - 12 Standard Phone Digits keys

      - 3 Volume Control keys (Up/Down/Mute (Microphone)

      - 1 Hands-free key

      • HD Handset (RJ9) x1

      • Standard RJ9 Handset Wire x1

      • 1.5M CAT5 Ethernet Cable x1

      • Back Rack x1

      • Status Indicator Light x1 (Red)

      • RJ9 Port x2: Handset x1, Headset x1

      • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

      • USB2.0 Port x1: Standard A, Connect with USB Wi-Fi dongle or Flash Driver

      • Safety Keyhole x1

      • DC Power Input: 5V/2A

      • Power Consumption (PoE): 1.55W~10.4W

      • Power Consumption (Adapter): 1.24W~9W

      • Working Temperature: 0~45˚

      • Working Humidity: 10~95%

      • Installation:

      - Desktop Stand

      - Wall-mounted (need an additional wall hanging parts)

      • Color: Black

      • Device Dimensions:

      - Desktop Stand (Angles 1): 181x175.75x184.4 mm

      - Desktop Stand (Angles 2): 181x175.85x185.1 mm

      - Wall-mounted: 181x115.43x208.75 mm

      • Gift Box Dimensions: 283x210x82 mm
