IP138 IP Phone

image title

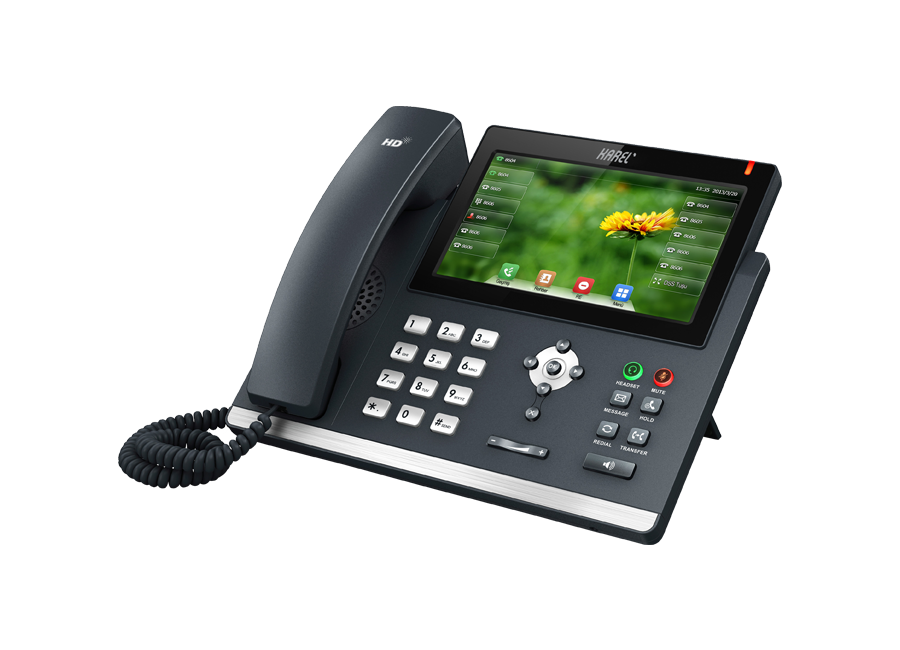

IP138 IP Phone

Offering PoE support with two Gigabit supported Ethernet ports, Karel IP138 is an IP phone with 16 VoIP account capacity. Its design uses a 7-inch color screen with a resolution of 800x480 pixels. It creates an ideal option for those who prefer an IP phone model with both touch and large screen.

image title

With the IP138P phone, you can communicate securely and seamlessly in HD voice quality from anywhere with an internet connection. It has a USB port and Bluetooth headset support, so it can be used with either wired or wireless headphones. Advanced and functional features of the device include DSS extension module support and advanced call management.

  • Features

    • Audio Features
      • HD voice: HD handset, HD speaker
      • Codecs: G.722, G.711(A/μ), G.723.1, G.729AB, G.726, GSM, iLBC
      • DTMF: In-band, Out-of-band(RFC 2833) and SIP INF
      • Full-duplex hands-free speakerphone with AEC
      • VAD, CNG, AEC, PLC, AJB, AGC

      Display and Indicator
      • 7" 800 x 480-pixel color touch screen with backlight
      • 24 bit depth color
      • LED for call and message waiting indication
      • Wallpaper
      • Intuitive user interface with icons and soft keys
      • National language selection
      • Caller ID with name, number and photo

      Phone Features
      • 16 VoIP accounts
      • Call hold, mute, DND
      • One-touch speed dial, hotline
      • Call forward, call waiting, call transfer
      • Group listening, emergency call
      • Redial, call return, auto answer
      • 3-way conferencing
      • Direct IP call without SIP proxy
      • Ring tone selection/import/delete
      • Set date time manually or automatically
      • Dial plan, XML Browser, action URL/URI

      Directory
      • Local phonebook up to 1000 entries
      • Black list
      • XML/LDAP remote phonebook
      • Intelligent search method
      • Phonebook search/import/export
      • Call history: dialed / received / missed / forwarded

      IP-PBX Features
      • Busy Lamp Field (BLF)
      • Bridged Line Apperance(BLA)
      • Anonymous call, anonymous call rejection
      • Remote office, hot-desking
      • Message Waiting Indicator (MWI)
      • Voice mail, call park, call pickup
      • Intercom, paging, music on hold
      • Call completion, call recording

      Management
      • Configuration: browser/phone/auto-provision
      • Auto provision via FTP / TFTP / HTTP / HTTPS for mass deploy
      • Auto-provision with PnP
      • Zero-sp-touch, TR-069
      • Phone lock for personal privacy protection
      • Reset to factory, reboot
      • Package tracing export, system log Network and Security
      • SIP v1 (RFC2543), v2 (RFC3261)
      • Call server redundancy supported
      • NAT transverse: STUN mode
      • Proxy mode and peer-to-peer SIP link mode
      • IP assignment: static/DHCP/PPPoE
      • HTTP/HTTPS web server
      • Time and date synchronization using SNTP
      • UDP/TCP/DNS-SRV(RFC 3263)
      • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
      • SRTP for voice
      • Transport Layer Security (TLS)
      • HTTPS certificate manager
      • AES encryption for configuration file
      • Digest authentication using MD5/MD5-sess
      • OpenVPN, IEEE802.1X
      • IPv6

      Feature keys
      • 29 one-touch DSS keys
      • 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
      • 6 navigation keys
      • Volume control keys
      • Illuminated mute key
      • Illuminated headset key
      • Illuminated hands-free speakerphone key Interface
      • Dual-port Gigabit Ethernet
      • Power over Ethernet (IEEE 802.3af), class 3
      • Built-in a USB port, support Bluetooth headset (Through USB Dongle)
      • 1xRJ9 (4P4C) handset port
      • 1xRJ9 (4P4C) headset port
      • 1XRJ12 (6P6C) EXT port: Supports up to 6 Expansion Modules for an attendant console application





  • Details

    • Other Physical Features
      • Wall mountable (optional)
      • External universal AC adapter (optional): AC 100~240V input and DC 5V/2A output
      • Power consumption (PSU): 2.0-6.4W
      • Power consumption (PoE):2.4-10.5W
      • Dimension(W*D*H*T): 266mm*226mm*185mm*54mm
      • Operating humidity: 10~95%
      • Operating temperature: -10~50°C

      Package Features
      • Qty/CTN: 5 PCS
      • Giftbox size: 324mm*263mm*128mm
      • Carton Meas: 660mm*338mm*273mm
