VP129 Android Video Phone

image title

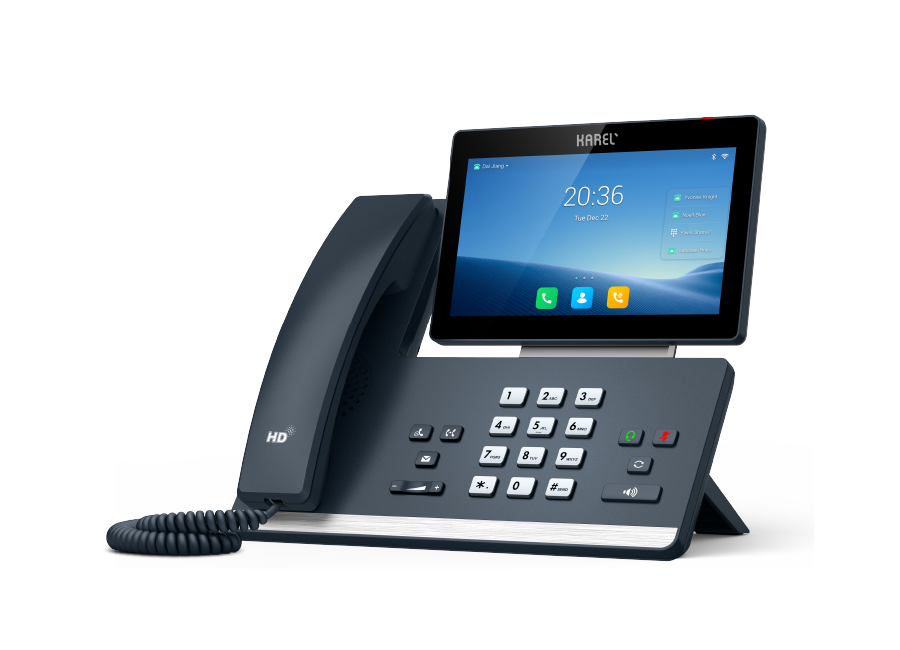

VP129 Android Video Phone

Karel VP129 Android Video Phone, which can appeal to a wide user base with its 16 VoIP account capacity, brings modern and technological solutions to communication processes in business life.

image title

Its 7-inch 1024x600 pixel capacitive adjustable touch screen has a user-friendly interface. Designed with a 5 MP, 720p resolution and 30fps HD camera, you can make video calls and participate in video conferences with HD sound quality.
Android 9.0-powered and PoE-enabled, the Karel VP129 has built-in Bluetooth 4.2 and Wi-Fi connections. It can be connected to media applications or storage devices via the USB 2.0 port. It can be used with wireless or USB headphones if desired.

  • Features

    • Phone Features

      • 16 VoIP account
      • Call Holding, Call transfer
      • Call on hold, Call transfer
      • One-touch speed dialing, Emergency call
      • Mute, Do not disturb
      • Group listening, Emergency call
      • Redial, Returning to a call, Auto-answer
      • Direct IP call without SIP proxy
      • Ring tone selection/installation/delete
      • Manual and automatic adjustment of date and time
      • Search plan, Action URL/URI
      • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
      • 3-way video conference support
      • Support for 10-way video/audio mixed conferencing
      • Send/receive data via Bluetooth, e-mail, etc.
      • Wireless Access Point (AP mode)

      Voice Specifications

      • HD audio: HD speaker, HD headset
      • Hearing aid compatible (HAC) handset
      • Intelligent noise filtering
      • Audio Codecs: Opus, G.722, PCMU (G.711A), PCMA (G.711μ), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
      • DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
      • Full-Duplex Hands free Speaker with AEC
      • VAD, CNG, AEC, PLC, AJB, AGC

      Video Specifications

      • 720p (1280x720), 30fps HD video calling
      • Video codecs: H.264 High Profile, H.264, VP8
      • Camera: 5 mega-pixel, plug-and-play, adjustable, camera shutter cover and LED indicator
      • View Angle (FOV): 75°±5°
      • Local video watching

      Android Apps

      • FileManager / Email / Calendar / Camera / Gallery / Recorder / Calculator / Browser / Message
      • 3rd party Android app support
  • Technical Features

    • Screen and Display

      • 7" 1024 x 600 capacitive adjustable touch screen
      • 5-point multi-touch surface
      • Screen Saver and Wallpaper
      • LED for call and pending message indication
      • Iconic user interface with flexible button
      • Multilingual user interface
      • Display name, number and picture of the caller

      IP PBX Integration

      • BLF (Busy Lamp Field)
      • BLA (Bridged line appearance)
      • Bilinmeyen çağrı, Bilinmeyen çağrı reddi
      • Beklemede mesaj göstergesi (MWI)
      • Uzak ofis, Ortak masa (hot-desking), Interkom, Paging
      • Sesli mesaj, Çağrı park etme, Çağrı yakalama, Bekleme müziği
      • Çağrı kayıt, Çağrı bitirme

      Phone Book

      • Phonebook (1000 entry)
      • Black List
      • XML/LDAP remote phone book
      • Smart Search Method
      • Phone Book Searching/Installation/Uploading
      • Call history: Outgoing / Incoming / Missed / Forwarded Calls

      Feature Keys

      • 27 DSS keys
      • 7 feature keys: hold, transfer, message, earphone, mute, redial, hands-free
      • Volume control keys
      • Illuminated mute/earphone/hands-free key

      Interface

      • 2xRJ45 Gigabit 10/100/1000M Ethernet ports
      • Internal Wi-Fi (2.4GHz/5.0GHz, IEEE802.11b/g/n)
      • Pair Bluetooth earphones and Mobile devices with built-in Bluetooth 4.2
      • 1 x USB 2.0 port (on the back of the phone): USB flash drive
      • Wired/wireless USB earphone
      • Color display DSS expansion modules
      • 1 x USB 2.0 port (on the top of the phone): Camera
      • 1 x Safety lock port
      • 1 x RJ9 (4P4C) handset port
      • 1 x RJ9 (4P4C) earphone port
      • Support for 3 color display expansion modules

      Management

      • Configuration: Web Interface / Phone / Automatic Update
      • Automatic Update over FTP / TFTP / HTTP / HTTPS
      • Automatic update with PnP, Zero-sp-touch, TR-069
      • Phone Lock for Personal Security Protection
      • Restore factory settings, restart
      • Uploading Trace packages and system log
      • Only the administrator can install or uninstall apps via automatic update.
      • Installation Assistant Wizard

      Network and Security

      • IPv4/IPv6
      • SIP v1 (RFC2543), v2 (RFC3261)
      • Call server redundancy support
      • NAT Translation: STUN Mode
      • Proxy and point-to-point SIP connection mode
      • IP Assigning Static / DHCP
      • HTTP / HTTPS web server
      • Synchronizing date and time by SNTP
      • UDP / TCP / DNS SRV (RFC 3263)
      • QoS: 802.1p/Q tagging (VLAN), Layer3 ToS, DSCP
      • SRTP
      • Transport Layer Security (TLS1.3)
      • HTTPS certificate management
      • Secure Configuration Folder with AES Passwording
      • Verified Adb encryption
      • MD5/MD5- Identity verification by voice
      • OpenVPN, IEEE802.1X
      • WPA2/WPA3
      • Secure boot
      • GARP

      Other Physical Specifications

      • Wall mountable (Optional)
      • External AC Adapter (optional): AC 100 ~ 240 V Input and DC 5 V/2A Output
      • Power Consumption (PSU): 2.5W~7.5W
      • Power Consumption (PoE): 3.3W~9W
      • Dimensions: 259.4mm*220mm*239mm*42.6mm
      • Operating Humidity: 10~95%
      • Operating temperature : -10~40°C Documents
