IP132G IP Phone

image title

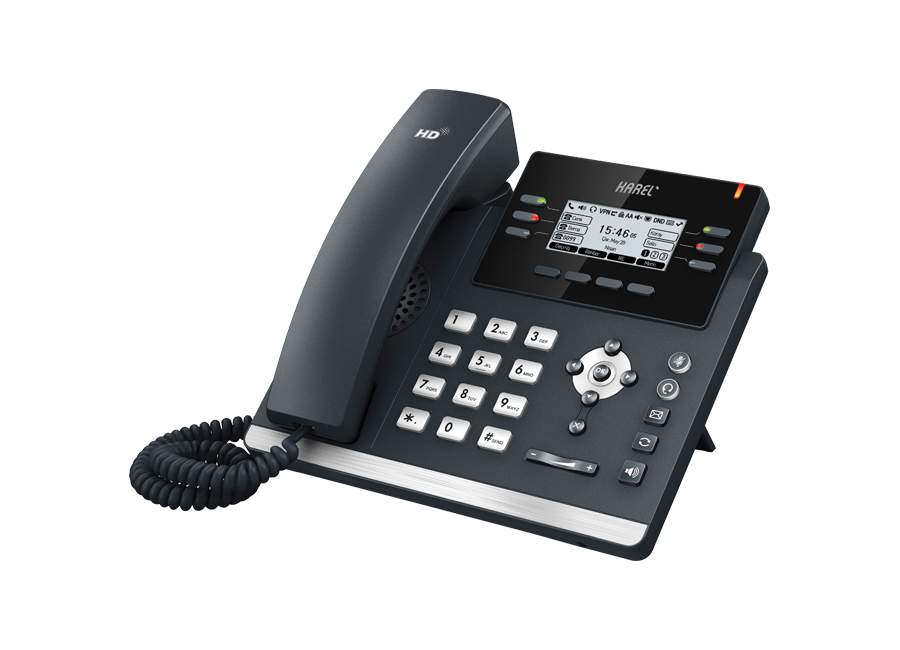

IP132G IP Phone

Karel IP132G, which provides communication over the SIP protocol, is an IP phone model that offers up to 12 VoIP accounts. The device, which has PoE capability with two Gigabit supported Ethernet ports, was developed using a 2.7-inch graphic display with a resolution of 192x64 pixels. High VoIP account capacity, HD sound quality and support for wireless headset adapters make it an ideal choice for executives and professionals.

image title

You can mount the IP132G IP Phone on the wall or use it on your desk with the support of two different adjustable angles. With its easy installation and user-friendly interface, you can have uninterrupted, clear and secure communication.

  • Features
      • Gigabit (10/100/1000 Mbps) destekli 2 ethernet portu
      • POE support
      • HD audio: HD codec, HD speaker, HD headset
      • 2.7" 192 x 64-pixel graphic display
      • 12 VoIP account
      • Earphones, Adapter support for wireless earphones
      • 2 adjustable angled posture supports
      • Wall mountable
      • Easy installation and update
      • Secure communication
  • Details

    • Voice Specifications

      • HD audio: HD codec, HD speaker, HD headset
      • Codec: G.711μ / A, G.729ab, G.723.1, G.726, iLBC
      • Broadband Codec: G.722
      • DTMF: In-Band, Out of band (RFC2833), SIP Info
      • Full-Duplex Hands free Speaker with AEC
      • VAD, CNG, AEC, PLC, AJB, AGC


      Screen and Display

      • 2,7" 192x 64-piksel grafik ekran
      • LCD backlight
      • Call and pending message LED flash
      • Dual color (red or green) LED light that changes according to line occupancy status
      • Iconic user interface with flexible button
      • National language selection
      • Display caller name and number


      Phone Features

      • 12 VoIP account
      • One-touch speed dialing, Redial
      • Call forwarding, Call on hold
      • Call transfer, Call Holding
      • Returning to a Call, Group listening
      • Mute, Auto-answer, Do not disturb
      • 3-way conference
      • Direct IP call without SIP proxy Ring tone selection/installation/delete Direct line, Emergency call
      • Manual and automatic adjustment of date and time
      • Call plan
      • XML scanner, Action URL/URI RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)


      Phone Book

      • Phonebook (1000 entry)
      • Black List
      • XML/LDAP remote phone book
      • Smart Search Method
      • Phone Book Searching/Installation/Uploading
      • Call history: Outgoing / Incoming / Missed / Forwarded Calls


      IP PBX Integration

      • BLF (Busy Lamp Field)
      • BLA (Bridged line appearance)
      • Unknown call, Reject unknown call Hot-desking
      • Pending message display (MWI)
      • Voicemail
      • Call parking, Call hunting
      • Intercom, Paging
      • Music on hold
      • Call Record


      Management

      • Configuration: Web Interface / Phone / Automatic Update
      • Automatic Update over FTP / TFTP / HTTP / HTTPS
      • Automatic Update with PnP
      • Zero-sp-touch, TR-069
      • Phone Lock for Personal Security Protection
      • Restore factory settings, restart
      • Uploading Trace packages and system log


      Network and Security

      • SIP v1 (RFC2543), v2 (RFC3261)
      • Call server redundancy support
      • NAT Translation: STUN Mode Proxy and point-to-point SIP connection
      • IP Assigning Static / DHCP
      • HTTP / HTTPS web server
      • Synchronizing date and time by SNTP
      • UDP/TCP/DNS-SRV(RFC 3263)
      • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
      • SRTP for voice
      • Transport Layer Security (TLS)
      • HTTPS certificate management
      • Secure Configuration Folder with AES Passwording
      • MD5/MD5- Identity verification by voice
      • OpenVPN, IEEE802.1X
      • IPV6


      Feature Keys

      • 6 line keys with Led where
      • 15 different features can be defined (3 pages)
      • 5 feature keys: message, earphone, mute, redial, hands-free
      • 4 soft keys
      • 6 navigation keys
      • Volume control keys
      • Illuminated mute button
      • Illuminated earphone key
      • Illuminated hands-free key


      Interface

      • 2xRJ45 Gigabit 10/100/1000M
      • Ethernet ports POE (Power over Ethernet (IEEE 802.3af)), class 2
      • 1xRJ9 (4P4C) headset port
      • 1xRJ9 (4P4C) earphone port
      • 1xRJ12 (6P6C) EHS Port


      Other Physical Specifications

      • 2 adjustable angled posture supports
      • Wall mountable
      • External Universal AC Adapter (optional): AC 100~240V input and DC 5V/1.2A output
      • Power Consumption (PSU): 1.4-3.9W
      • Power Consumption (PoE):2.1-5.9W
      • Dimensions: 212mm * 189mm * 175mm * 54mm
      • Operating Humidity: 10~95%
      • Operating temperature : -10~50°C
