IP136 IP Phone
IP136 IP Phone

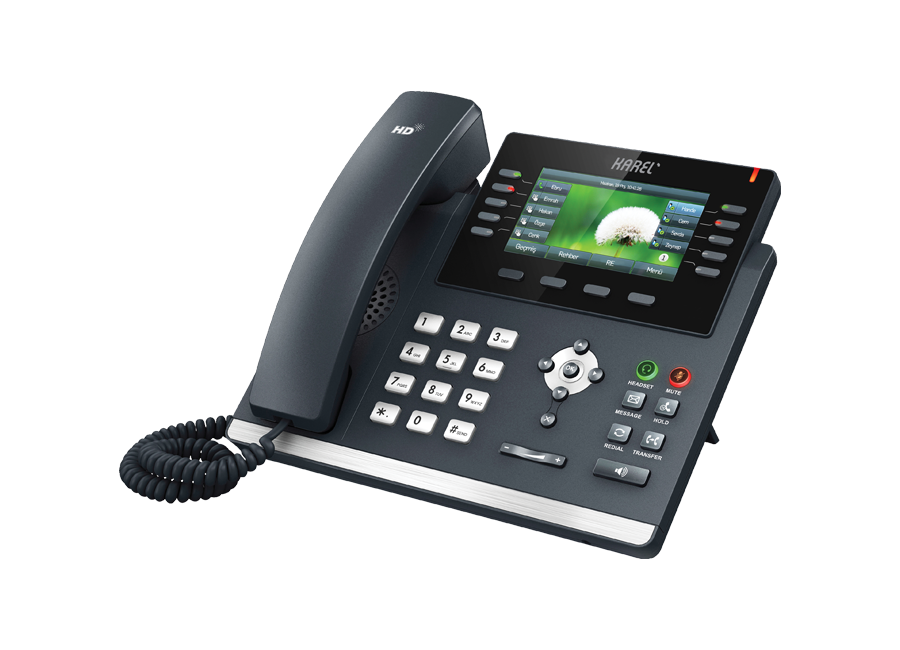

Karel IP136 is an IP phone model with PoE support and HD voice quality. With a large 4.3-inch color screen with special backlighting, it offers a high resolution of 480x272 pixels. It can be used for uninterrupted and secure communication from any point where an Internet connection is available.
Karel IP136 is both user-friendly and has advanced and functional features. 16 different VoIP accounts can be used together, which is a significant advantage for businesses. It has two Gigabit Ethernet ports, a USB port and a DSS extension module and can be used with a Bluetooth headset via USB dongle if desired. You can also take advantage of the IP136 IP Phone's advanced call management feature and the 20-key EXP40 expansion module to complete business processes faster and more practically.
-
Features
-
Audio Features
• HD voice: HD handset, HD speaker
• Codecs: G.722, G.711(A/μ), G.723, G.729AB, G.726, GSM, iLBC
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC Display and Indicator
• 4.3" 480 x 272-pixel color display with backlight
• 16 bit depth color
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Wallpaper
• Intuitive user interface with icons and soft keys
• National language selection
• Caller ID with name, number and photo
Phone Features
• 16 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, SMS, emergency call
• Redial, call return, auto answer
• 3-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan
• XML Browser
• Action URL/URI
• Multi-Language Support: Turkish, English, Arabic, Chinese, Spanish, Hindi, Portuguese, Russian, Japanese. Also, any translation can be added upon request.
Directory
• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed / received / missed / forwarded
IP-PBX Features
• Busy Lamp Field (BLF)
• Bridged Line Apperance(BLA)
• Anonymous call, anonymous call rejection
• Hot-desking
• Message Waiting Indicator (MWI)
• Voice mail
• Call park, call pickup
• Intercom, paging
• Music on hold
• Call completion
• Call recording Management
• Configuration: browser/phone/ auto-provision
• Auto provision via FTP / TFTP / HTTP / HTTPS for mass deploy
• Auto-provision with PnP
• BroadSoft device management
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log Network and Security
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT transverse: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5- sess
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
Feature keys
• 10 line keys with LED
• 10 line keys can be programmed up to 27 various features (3-page view)
• 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• Volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key
Interface
• Dual-port Gigabit Ethernet
• Support Bluetooth headset through USB Dongle
• 1xRJ9 (4P4C) handset port
• 1xRJ9 (4P4C) headset port
• 1XRJ12 (6P6C) EXT port: Supports up to 6 Expansion Modules for an attendant console application
• Power over Ethernet (IEEE 802.3af), class 3

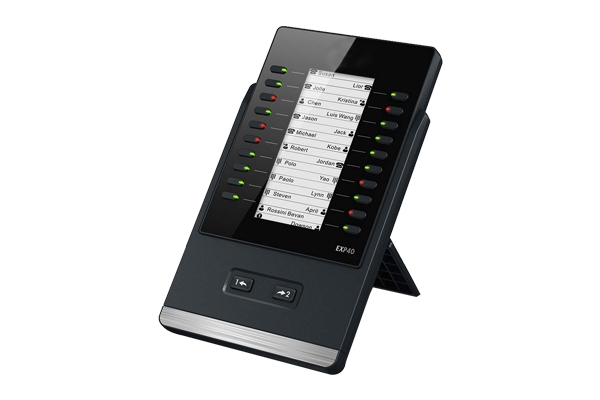

- Expansion Module: EXP40 (20 Keys)
-
-
