IP213G IP Phone

image title

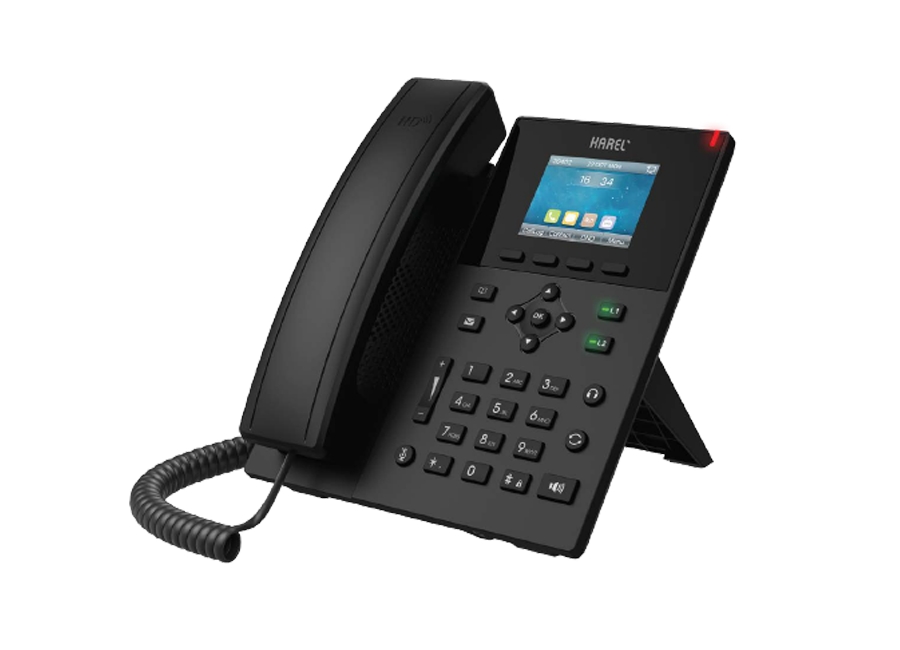

IP213G IP Phone

Offering up to six VoIP accounts, Karel IP213G is an IP phone with 2xGigabit LAN and PoE support. Its 2.8-inch color LCD screen is equipped with special backlighting. The device offers multi-language support on the web/screen interface and is ideal for business communication processes with HD audio quality and triple conferencing. You can use the IP213G IP Phone for uninterrupted and high quality communication anywhere with internet access.

  • Features

    • Specifications

      • Mute
      • Call Holding / Retrieving
      • Call on Hold
      • Intercom
      • Caller Identification (CID)
      • Unknown Call (CID retention)
      • Call Transfer (Blind/Smart Transfer)
      • Call Forwarding (Forwarding Always / In Busy / In Missed)
      • Call parking / Call Hunting (Switchboard integration)
      • Redial
      • Do Not Disturb
      • Auto-Answer Voicemail (Switchboard Integration)
      • 3-way Conference
      • Hotline
      • Hot-Desking

      Phone Features

      • Local Phone Book (1000 entries)
      • XML / LDAP Remote Phone Book (1000 entries)
      • Call History (up to 1000, incoming / outgoing / missed)
      • Black List/White List Call Filter
      • Visual Wait Message Indicator (VMWI)
      • Programmable Flexible Keys
      • Network Date/Time Synchronization
      • Action URL / Active URI
      • uaCSTA

      Voice Specifications

      • HD Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
      • Wideband ADC/DAC 16KHz sampling
      • Codecs: G.711a/u, G723.1, G.726-32K, G.729A, iLBC
      • Broadband Codec: G.722, Opus
      • Full-Duplex Acoustic Echo Canceller (AEC)
      • Voice Activity Detection (VAD) / Comfort Noise Generator (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
      • Packet Loss Concealment (PLC)
      • Dynamic Adaptive Jitter Buffer
      • DTMF: In-Band, Out-of-Band , DTMF-Relay (RFC2833) / SIP INFO
  • Technical Features

    • Network Specifications

      • Physical: 2 units 10/100/1000 Mbps Ethernet ports, Bridge Mode
      • IP Mode:IPv4/IPv6/IPv4&IPv6
      • IP Configuration: Static / DHCP / PPPoE
      • Network Access Control: 802.1x
      • VPN: L2TP / OpenVPN
      • SHA encryption algorithm SHA1/SHA2
      • VLAN
      • LLDP
      • QoS

      • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

        Protocols

      • SIP2.0 over UDP/TCP/TLS
      • RTP / RTCP / SRTP
      • STUN
      • DHCP
      • IPV6
      • LLDP
      • PPPoE
      • 802.1x
      • L2TP
      • OpenVPN
      • SNTP
      • FTP / TFTP
      • HTTP / HTTPS
      • TR069

      Management

      • Auto-Provisioning with FTP / TFTP / HTTP / HTTPS / DHCP OPT66 / SIP PNP / TR069
      • Web Management Portal
      • Web-Based Package Backup
      • Configuration Backup / Restore
      • Phone Book Import / Export
      • Software Update
      • Syslog

      Physical Specifications

      • LCD: 2.8-inch (320x240) color display LCD
      • Keypad 31 keys, 4 flex keys, 4 feature keys (Contacts, MWI, earphone, redial), 4 navigation keys, 2 line keys with three color LEDs, 1 OK key, 12 standard phone keypad, 3 volume control keys (Up/down/mute (Microphone), 1 hands-free key
      • HD handset (RJ9) x1
      • Standard RJ9 handset cable x1
      • 1.5M CAT5 ethernet cable x1
      • Rear leg x1
      • Status indicator light x1 (red)
      • 2 units RJ9 ports: Handset and earphone
      • 2 units RJ45 Ethernet outputs: Network, PC (Bridge)
      • Safety keyhole x 1
      • Wall mountable (Optional)
      • DC Power Input: 5V / 0.6A
      • Operating Temperature: 0°C ~ 45°C
      • Operating humidity: 10%-95
      • Bifunctional foot: Tabletop / wall mount (Optional)
      • Colour: Black
      • Package dimensions: 283x210x82mm (W x H x Z)
