IP212P IP Phone

image title

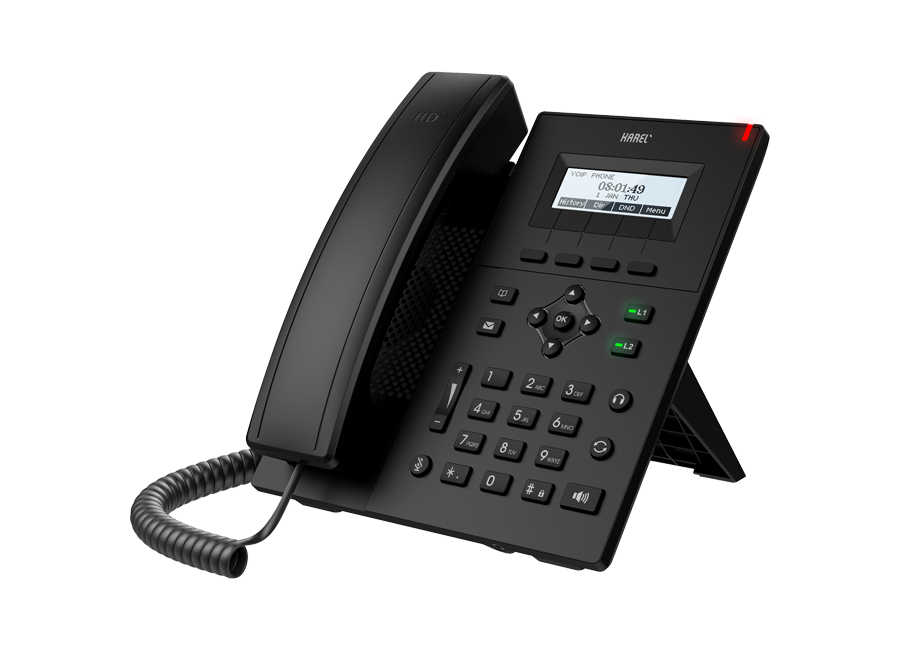

IP212P IP Phone

With 2xLAN and PoE (Power over Ethernet) support, Karel IP212P is an IP phone that enables employees to communicate uninterruptedly from anywhere with internet access. Two VoIP accounts can be defined on the device.
4 flexible keys provide quick access to the functions of the Karel IP212P phone. Karel IP212P allows you to maximize the communication process in your business with its automatic answering feature, message waiting indicator (VMWI), wireless headset support and wall mountable design.

  • Features

    • Generic

      • 2 SIP Lines

      • HD Voice

      • PoE Enabled

      • Dot-matrix screen

      • Handset / Hands-free / Headset mode

      • Desktop Stand / Wall-mounted (need an additional wall hanging parts)

      • Optional External Power Supply

      Phone Functions

      • Local Phonebook (500 entries)

      • Remote Phonebook (XML/LDAP)

      • Call logs (In/Out/Missed, 600 entries)

      • Black/White List Call Filter

      • Voice Message Waiting Indication (VMWI)

      • Programmable Soft keys

      • Network Time Synchronization

      • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)

      • Support Jabra wireless headset (Through EHS20 EHS Cable)

      • Action URL / Active URI

      • uaCSTA

      Call Functions

      • Call out / Answer / Reject

      • Mute / Unmute (Microphone)

      • Call Hold / Resume

      • Call Waiting

      • Intercom

      • Caller ID Display

      • Anonymous Call (Hide Caller ID)

      • Call Forward (Always/Busy/No Answer)

      • Call Transfer (Attended/Unattended)

      • Call Parking/Pick-up (Depending on server)

      • Redial

      • Do-Not-Disturb

      • Auto-Answering

      • Voice Message (With server)

      • 3-way Conference

      • Hot Line

      • Hot desking

  • Technical Features

    • Audio

      • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)

      • Wideband ADC/DAC 16KHz Sampling

      • Narrowband Codec: G.711a/u, G.726-32K, G.729A, iLBC

      • Wideband Codec: G.722, Opus

      • Full-duplex Acoustic Echo Canceller (AEC)

      • Voice Activity Detection (VAD) / Comfort, Noise Generation (CNG) / Background, Noise Estimation (BNE) / Noise , Reduction (NR)

      • Packet Loss Concealment (PLC)

      • Dynamic Adaptive Jitter Buffer

      • DTMF: In-band, Out-of-Band – DTMF- Relay (RFC2833) / SIP INFO

      Network

      • Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass

      • IP Mode:IPv4/IPv6/IPv4&IPv6

      • IP Configuration: Static IP / DHCP / PPPoE

      • Network Access Control: 802.1x

      • VPN: L2TP / OpenVPN

      • VLAN

      • LLDP

      • QoS

      • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)



      Protocols

      • SIP2.0 over UDP/TCP/TLS

      • RTP/RTCP/SRTP

      • STUN

      • DHCP

      • IPv6

      • LLDP

      • PPPoE

      • 802.1x

      • L2TP

      • OpenVPN

      • SNTP

      • FTP/TFTP

      • HTTP/HTTPS

      • TR-069



      Deployment & Management

      • Auto-Provisioning via FTP / TFTP / HTTP / HTTPS /DHCP OPT66/SIP PNP/TR-069

      • Web Management Portal

      • Web-based Packet Dump

      • Configuration Export / Import

      • Phonebook Import/Export

      • Firmware Upgrade

      • Syslog

      Physical Specifications

      • LCD : 128x48 Dot-matrix screen with backlight

      • Keypad: 31 keys, including

      - 4 Soft keys

      - 4 Function keys (Phonebook, MWI, Headset, Redial)

      - 4 Navigation keys

      - 2 Line keys (With LED Indicator Light)

      - 1 OK key

      - 12 Standard Phone Digits keys

      - 3 Volume Control keys( Up/Down/Mute (Microphone)

      - 1 Hands-free key

      • HD Handset (RJ9) x1

      • Standard RJ9 Handset Wire x1

      • 1.5M CAT5 Ethernet Cable x1

      • Back Rack x1

      • Status Indicator Light x1 (Red)

      • RJ9 Port x2: Handset x1, Headset x1

      • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

      • Safety Keyhole x1

      • DC Power Input: 5V/0.6A

      • Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W

      • Working Temperature: 0~45˚

      • Working Humidity: 10~95%

      • Installation:

      - Desktop Stand

      - Wall-mounted (need an additional wall hanging parts)

      • Color: Black

      • Device Dimensions:

      - Desktop Stand (Angles 1): 181 x 175.75 x 184.4 mm

      - Desktop Stand (Angles 2): 181 x 175.85 x 185.1 mm

      - Wall-mounted: 181x115.43x208.75 mm

      • Gift Box Dimensions: 283x210x82 mm
