IP202P IP Phone

image title

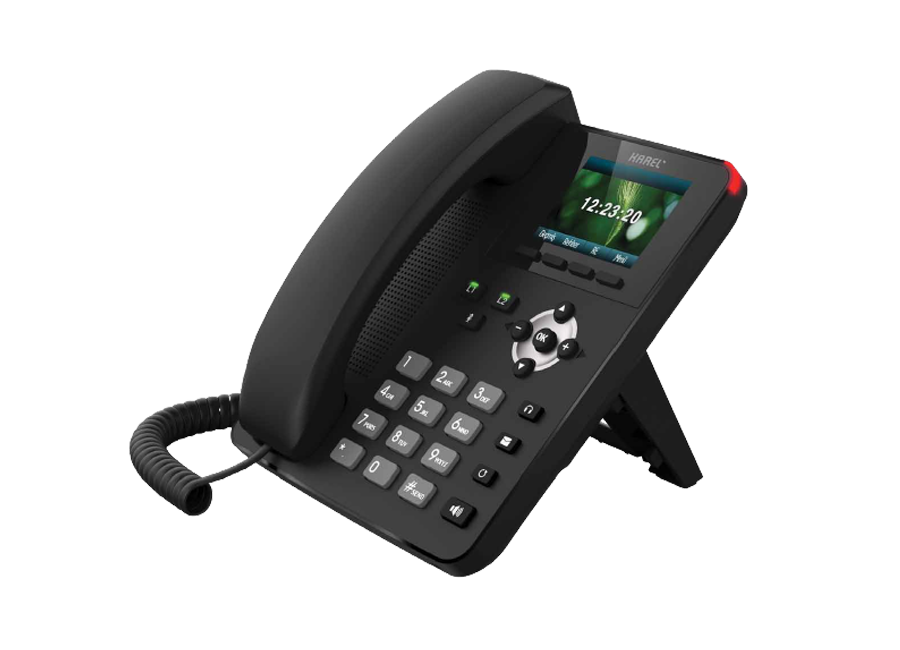

IP202P IP Phone

Karel IP202P is a PoE IP phone that helps improve practicality and efficiency by streamlining communication in business processes. The device with two VoIP lines features a 2.4-inch color LCD display and a user-friendly interface. With IP202P IP Phone, you can communicate uninterruptedly from anywhere with internet access.

  • Features

    • Generic

      • 2 SIP Lines
      • HD Voice
      • POE Enabled(IP202P)
      • Handset (HS) / Hands-free (HF) / Headphone (HP) Mode (EHS support for Plantronics headsets)
      • Desktop / Wall-mount installation
      • Economical and Environmental friendly package
      • Industrial Standard Certifications: CE/FCC

      Call Features

      • Call out / answer / reject
      • Mute / unmute (microphone)
      • Call Hold / Resume
      • Call Waiting
      • Intercom
      • Caller ID Display
      • Call Forwarding (Always/Busy/No Answer)
      • Call Transfer (Attended/Unattended)
      • Call Parking/Pick-up (depending on server)
      • Redial
      • Do-Not-Disturb (per line / per phone)
      • Auto-Answering (per line)
      • Voice Message (on server)
      • Local 3-way Conference
      • Hot Line

      Phone Features

      • Intelligent Phonebook (up to 500 entries total)
      • Remote Phonebook (XML/LDAP)
      • Intelligent Contact Number Filtering
      • Call log (100 entries total, in/out/missed)
      • Voice Message Waiting Indication (VMWI)
      • Network Time Synchronization
      • Multi-language support in screen and web UI

      Audio

      • HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
      • Wideband ADC/DAC 16KHz Sampling
      • Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
      • Wideband CODEC: G.722
      • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
      • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
      • Packet Loss Concealment (PLC)
      • Dynamic Adaptive Jitter Buffer up to 300ms
      • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO



  • Technical Features

    • Networking

      • Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass
      • IP Configuration: Static / DHCP / PPPoE
      • Network Access Control: 802.1x
      • VPN: L2TP (Basic Unencrypted) / OpenVPN
      • VLAN
      • QoS



      Protocols

      • SIP2.0 over UDP/TCP/TLS
      • RTP/RTCP/SRTP
      • STUN
      • DHCP
      • PPPoE
      • 802.1x
      • L2TP (Basic Unencrypted)
      • OpenVPN
      • SNTP
      • FTP/TFTP
      • HTTP/HTTPS
      • TR069



      Deployment & Maintenance

      • Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / OPT66 / SIPPNP / TR069
      • Web Management Portal
      • Web-based Packet Dump
      • Configuration Backup/Restore
      • Auto/Manual Online Software Upgrade
      • Syslog



      Physical Specifications

      • LCD x1: 2.4 inch (320x240) color-screen LCD
      • Keypad: 28 keys, including
      • 4 Soft-keys
      • 12 Standard Phone Digits keys
      • 5 Navigation keys
      • 2 Line keys with tri-color LED
      • 4 Function key
      • 1 Hands-free
      • HD Hands-free Speaker (0 ~ 7KHz) x1
      • HD Hands-free Microphone (0 ~ 7KHz) x1
      • HD Handset (RJ9) x1
      • Standard RJ9 Handset Wire x1
      • 1.5M CAT5 Ethernet Cable x1
      • RJ9 Phone Jacket x2: Handset x1, Headphone x1
      • RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled), PC x1 (Bridged to Network)
      • Main Chipset: Broadcom
      • DC Power Input: 5V/600mA
      • Power Consumption: Idle – ~ 1.1W, Peak – ~ 1.8W
      • Working Temperature: 0°C ~ 40°C
      • Working Humidity: 10 ~ 65%
      • Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
      • Color: Black
      • Package Dimensions: 275x215x62mm (W x H x L)
