EXP-40 Expansion Module

image title

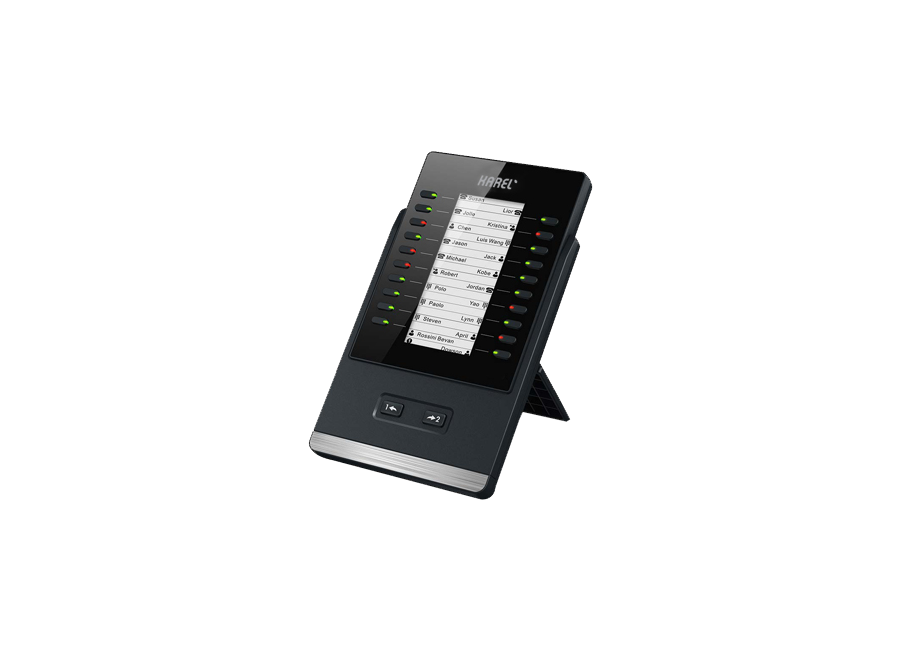

EXP-40 Expansion Module

The EXP-40 Expansion Module, which you can use to get maximum efficiency from Karel's IP136 and IP138 IP phone models, offers effective solutions for those who want to manage a large number of calls quickly and practically. It is an ideal product option for executive assistants, receptionists, call center employees and managers who want to track calls. Designed with a graphic LCD display with 160x320 pixel resolution, the device is BFL/BLA supported. It has features such as speed dialing, call capture, call waiting, voicemail and Intercom.
The EXP-40 Expansion Module has twenty DSS keys with dual color LEDs and can be assigned specific functions. If more DSS keys are required, the total number of programmable keys can be increased to forty through the page change feature. Six EXP-40 Expansion Modules can be connected in series with each other. If you use the modules in a chain, you can use 120 physical keys at the same time.

  • Features

    • Karel EXP40 Expansion Module is designed to increase the power and flexibility of Karel IP136 and IP138 phones. 160x320 graphic LCD and 20 hard keys with two colour LED make keeping a track of settings and functions defined on keys easier

      Up to 40 programmable keys, by 20 additional keys that are added via page flip feature. Each programmable key supports speed dialing, BLF / BLA intercom, call forwarding / parking / hunting / retrieving / holding / transferring functions. 6 EXP40 may be connected to each other as series.

      Karel EXP40 Expansion Module is an ideal product for managers who wish to monitor and manage receptionists, manager assistants, call-centre employees and calls

      Physical Specifications

      • 2xRJ12 (6P6C) port for data transferring
      • Power Adaptor: AC 100 -240V, DC 5V/1.2A
      • Dimensions: 127mm x 213mm x 167mm
      • Operating Humidity: 10% - 95%
      • Operating Temperature: -10~50 °C


      Basic Features

      • 160x320 pixels 16 level grey tone graphic LCD
      • 20 hard keys with two colour LED for status information
      • 20 additional keys via page flip feature
      • Support for connection of 6 EXP40 chained modules
      • Different signs for different functions on LCD screen
      • Busy Lamp Field (BLF) support
      • Bridge Line Appearance (BLA)
      • Programmable for Speed Dialing
      •  Call hunting
      • Intercom
      • Hold
      • Transfer
      • Do Not Disturb
      • Voicemail
      • Forwarding
      • It may be used with Karel IP136 and IP138 phones.
      • Up to 2 expansion modules can be supplied by IP136 and IP138 without requiring external power supply
