EXP-20 Expansion Module

image title

EXP-20 Expansion Module

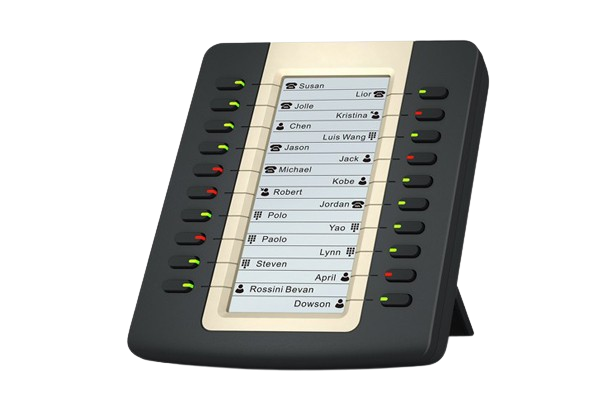

The EXP-20 Expansion Module, which you can use to manage calls faster, more efficiently and effectively, has been developed to increase the power of the IP1141 IP Phone. Designed using a 160x320 pixel resolution LCD display, the product supports functions such as BLF, XML browser, multi-conferencing and call forwarding. It is possible to link up to six DSS modules in a chain.
You can assign functions to the EXP-20 Expansion Module's twenty physical keys designed with dual color LEDs and save both time and practicality in call management. Through the page change feature, you can increase the number of programmable keys to a total of thirty-eight. It does not require an external power supply and displays a different icon on the LCD screen for each function.

  • Features

    • Karel EXP20 Expansion Module is designed to increase the power and flexibility of Karel IP1141 IP phone. 160x320 graphic LCD and 20 hard keys with two colour LED make keeping a track of settings and functions defined on keys easier.

      Up to 38 programmable keys, by 18 additional keys that are added via page flip feature. With each of the programmable keys, functions such as speed dialing, BLF, multi-conference, call forwarding, LDAP, XML scanner are supported. 6 EXP20 may be connected to each other as series.rak bağlanabilir.

      Karel EXP20 Expansion Module is an ideal product for managers who wish to monitor and manage receptionists, manager assistants, call-centre employees and calls. öneticiler için ideal bir üründür.
        Screen Features

      • 160x320 graphic LCD
      • LCD backlight
      • Two-page feature
      • Different signs for different functions on LCD screen

      Feature Keys

      • 20 programmable physical keys with multi-coloured LED
      • 18 additional keys via page flip feature
      • Programmable keys; BFL list, multi-conference, call forwarding, LDAP, XML scanner feature

      Physical Specifications

      • Two Adjustable Standing Angles
      • Up to 2 expansion modules, external power supply not required
      • Support for connection of 6 EXP20 chained modules
      • 2xRJ12 (6P6C) port for data transferring
      • Dimensions (W * D * W * L): 122mm * 143mm * 110mm * 45mm
      • Supported in IP1141 IP phones.
      • Operating Temperature: -10~50 °C
      • Operating Humidity: 10% - 95%
