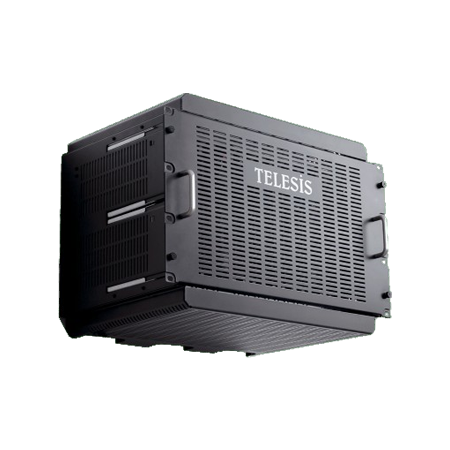

PX24 xrX Autonomous IP Telephone Switchboard

rXs' autonomous capabilities make them a preferred choice, especially for organizations with multiple locations. Autonomous capabilities such as superior and unique communication security, no channel limitations between locations, all units can work as a whole in a single switchboard structure, subscribers in different locations can be monitored, all external locations can keep a back-up of other locations (geo-back-up), all units can be reported from any desired location, voice recordings kept in different locations can be stored in a desired location, and many other capabilities provide unique opportunities to organizations with dispersed locations.

The rXs are interconnected via IP network (LAN/WAN) and support connections with or without VPN completely without any security vulnerability, creating a big difference compared to all other traditional distributed architecture switchboards.

PX24 xrXs can be installed either on the wall or in 19″ cabinets in the form of racks, as well as in geographical or local locations, together with mrXs in distributed architecture, providing both economical and compact use.

Telesis PX24 xrX is a multi-featured autonomous IP telephone switchboard. It offers a wide range of support such as analog and digital lines, thousands of TDM ports, tens of thousands of SIP/H.323 IP ports, PRI ISDN interfaces. It also supports various devices such as terminals, gateways, gatekeepers, IP phones, softphones, analog phones and faxes.

• Analog, digital and IP subscriber support simultaneously,

• Ability to work in Pure IP structure,

• Softphone PC Phone and Mobile SIP Subscriber support,

• Analog, digital (ISDN) and IP external line support simultaneously,

• Uninterrupted communication thanks to its autonomous feature,

• Dual-channel and power-sharing power units,

• Unlimited switching channels between units (between locations),

• 256 Bit encryption and Diffie-Helman key exchange, secure negotiation with sRTP/TLS,

• The Xymphony operating system is open source, highly secure and fast,

• Standard 8 channels greeting, 8 channels message record / DVR Hardware (Voice Response, Audio recording, Voicemail) (can be increased) on each unit,

• Professional Robot Operator (45 Submenus, 100 Different Scenarios, Time Control),

• Different Greetings in Multiple Languages (Different Greetings for Different External Line Groups),

• Voice Mailbox in each unit starting from 12,000 Minutes,

• Automatic License sharing,

• Automatic synchronization,

• Automatic back-up

• Automatic parameter transfer,

• Divisibility into hundreds of units,

• Distributed architecture and geographic back-up,

• Standard 2 VoIP channels (can be increased),

• Standard 2 multipurpose relays on each unit,

• Audio Recording (Instant and Automatic),

• Integrated fiber optic connection (optional)

• Caller ID for all subscribers,

• Ethernet Hardware, Web Interface (Remote Access) and VoIP support,

• IP v6 and Video call support,

• Entegre SIP Registrar / Proxy / Server,

• WebPhone (Web Click-to-Talk) support,

• PC Console support for Digital and Analog Internal Line Subscribers (XCom),

• Multi-Conference (Classic and Conference Room),

• Call Record, Charging and Reporting Software (XTools),

• Indefinite External Line - Connecting External Line and Forwarding Internal Line to Cell Phone,

• Advanced Time Restrictions and Routings in International Applications,

• SNMP, TAPI and xAPI Support,

• Outlook integration,

• Sending missed calls and system warning messages via e-mail server,

• Embedded LDAP server

Uniqueness with CAU Technology:

rX series are the first telephone switchboards worldwide to adopt the Cluster Of Autonomous Units (CAU) technology. This technology is constantly evolving, offering an innovation that impacts robotics and space technologies.

No Hardware Needed:

The most striking feature of rX switchboards is that they incorporate a wide range of functionality without the need for any hardware. It does not include Central Processing Unit (CPU), server, distributed CPU, disk drive and similar hardware, focusing only on autonomous processor, power unit and user cards.

Enhanced CAU Collaboration:

CAU technology enables rXs to come together and operate in a single switchboard structure with integrity superior to traditional distributed architecture switchboards. This structure offers excellent uniformity regardless of geographic location. rXs are interconnected over an IP network and securely support connections with or without VPN.

Back-up and Security:

rXs keep a complete and automatic backup of all other units individually within each unit. Any malfunction within the system affects only the unit concerned and the other units continue to operate unaffected. It offers strong communication security with AES256 Encryption, a voice encryption method.

Xymphony Operating System:

rXs use the proprietary and national Xymphony operating system. This operating system is distinguished by its security, speed, flexibility and high processing capacity. It can be easily managed via the web interface and accessed from any device.

Unmatched Capability in Strength and Back-up:

Specially designed power units for PX24 xrX are equipped with hot-back-up and power-sharing features. This special design allows rXs to offer full back-up in every respect to ensure uninterrupted communications. Even if the power unit fails, the system can still operate without interruption.

Strong Communication Security:

With AES256 Encryption and the Xymphony operating system, rXs can securely communicate with each other anywhere in the world. This feature offers unrivaled communication security.

Smart Management and Maintenance:

rXs have smart features such as automatic license sharing, software updates, synchronization and information sharing. These features ensure that your communications are uninterrupted and maintain your communications continuity without the need for a centralized backup or unit.
