DS200 series IP Telephone Switchboards

Flexible Capacity and Peripheral Options

DS200 IP Communication System proprietary IP extensions and SIP for extensions and both SIP and H.323 protocols and new generation audio compression algorithms in external lines. Thus, they provide the flexibility to use different peripherals.

In the DS200 series, fiber optic lines can be terminated at the switchboard. In this way, the switchboard service area can be expanded; multi-location solutions connected with fiber lines can be offered in a single switchboard structure.

Peripherals That Can Be Used With DS200 Series IP Communication Systems:

Standard SIP and Karel SIP Phones

Karel IP phones: IP phones with support for DS200's advanced subscriber features

Video SIP Phones

WiFi SIP Phones

Mobile phones that support SIP software

IP DECTSystem (IP DECT base stations and IP DECT handsets that support SIP signaling protocol)

Other terminals with SIP support

IP Communication Applications

Extensions are not required to be in the same location with the PABX. Extensions can communicate continuously with access units that can communicate over IP such as IP phones, IP soft-phones, WiFi phones or VoIP enabled smart phones etc. from any point and at any time.

Remote Office Applications

In businesses with multiple locations, any extension in a branch office can get connected to the exchange in the head office directly over internet with various IP terminals without any additional equipment.

The fact that remote PABX extensions can call each other using their extension numbers by building a network structure with PBXs in several locations provides convenience and economy in communications.

DS200 IP Communication System operates interactively with other SIP and H.323 compliant devices (PBX, gateway etc.) and provides cost-effective and high quality communications over the data networks that are already available or that will be established in the future.

Video Call

All IP extensions connected to DS200 IP Communication System can make video calls between themselves or through external IP lines using videophones, special sets or smart phones.

Mobility

System provides mobility in business life with its support for communication regardless of the location. Mobile employees of the business using smart mobile phones with SIP support can use system features by subscribing to the exchange over WiFi or 3G.

Unified Communications Applications

DS200 IP Communication Systems provide unified communications applications such as Voice-over-IP, fax-over-IP, call recording, conference call, video call, monitoring presence, instant messaging, mobile applications, remote extensions and remote office within a single integrated system.

Presence

Presence allows other extensions to see whether the extension is available, busy, online/offline and the special status that is set by the person himself/herself with a text entry. Thanks to the Presence feature, it becomes possible to access the relevant person with the quickest and most suitable method.

Instant Messaging

Extensions can communicate with each other instantly in written form. Communication is performed very quickly and can be recorded thanks to Instant Messaging. It is possible to examine Instant Messaging records to prevent any disputes.

Networking Applications

DS200 IP communication systems can operate with SIP/H.323 IP external line interfaces or products with ISDN QSIG support as a single communication system when more than one communication system shall be used together or in different locations. Thanks to the uniform numbering plan, extensions in different locations can call each other with their extension numbers. Frequently used PBX features such as caller ID, least cost routing, routing authorization, alternative routing, call forwarding and call transfer are supported in the network.

EVM200, The Automatic Call Greeting, Call Forwarding (ACD) and Voicemail Module, distributes the incoming calls to the called extension or department interactively without the need for the intervention of an operator. Voicemail feature allows other extensions or external callers to leave a message for the extension they have called. Extensions can access these messages from another place. This configuration, which allows that the system to reply to 32 calls simultaneously and its voicemail capacity to be increased to a value over 20 hours, helps in decreasing the workload of the employees and increasing the efficiency of the organization.

ACD application, included as integrated in the software of DS200 IP Communication Systems, provides 4 channel automatic call greeting and forwarding features when EVM200 is not used in the system.

Computer Telephony Integration (CTI)

DS200 IP Communication System is convenient thanks to the computer telephony integration (CTI) feature that integrates the telephony functions with available business applications. Server that supports CTI operations is integrated to DS200 IP Communication Systems. An individual PC/Server equipment is not required. Net-Console software allows using the CTI features of communication system for analog and digital extensions on the PCs.

Call record listing software allows lowering the costs by keeping the communication expenses under control. DS200 series IP communication systems allows call charging by recording information of all calls, and with methods like detecting the credit and pole switching and rated virtual charging. Net-CM application allows transferring the call records to any PC on the network to be used for charging, reporting and various analyses.

Web based Web-CM application allows access to call record lists of several PBXs from anywhere at any time, and taking reports specific to an extension.

Least Cost Routing (LCR)

DS200 IP Communication System can direct the calls to the route with the lowest cost thanks to the least cost routing feature.  Thus, LCR feature provides a great saving in the communication costs that takes an important place in the operational costs.

Alternative route feature allows that the calls are made through other routes if they cannot be made through the first route preference. Particularly, routing the calls to IP operators over IP external lines provide a high level of saving in communication costs.

Conference

The conferencing feature allows multiple participation in calls, allowing up to 32 users to conference together. This platform allows making conference calls with participants from remote locations and thus reduces the costs and time spent for meetings. Conference receiving enables video conferencing with video phones, soft phones and Karel Mobile application.

Quos Support

It ensures continuity of the audio quality by monitoring the performance on the network and taking necessary precautions.

FIREWALL

Firewall integrated to the PABX ensures safer IP communication. Packages other than the specified IPs, MAC addresses or ports may be blocked.

Secure Calling

Standard sRTP/TLS encryption ensures high level of security in audio communications without the need for VPN installation.

High Audio Quality

DS200 IP features advanced audio algorithms. Thus, perfect audio quality is obtained with standard terminals with HD audio quality support and Karel HD terminals.

Advanced Central Phonebook

Users can enter information to the common memory on DS200 IP. Users can easily search PABX phonebook and central phonebook using names and T9 algorithm from their special phone sets. LDAP compliant phone sets can also use this feature when the phonebooks are uploaded to an external server thanks to the Central Phonebook application that supports LDAP protocol. In this way, previous phonebooks of the businesses before the new installation can be directly used by the extensions thanks to the LDAP integration.

Multi PBX Programmer

Several systems at the same location or at different locations may be remotely managed and updated from a single point and a single interface.

Automatic Back-Up Manager

DS200 IP Communication System can be backed up easily from any location by specifying the start time.

Alarm Software

Status of all DS200 IP Communication System Towers installed in the communication network can be monitored from a single point.

Alarm warnings are displayed visually and audibly and system manager is informed by e-mail and SMS.

SNMP

Internal SNMP application ensures management of multi-location systems from a single point and that many settings are performed rapidly with standard SNMP softwares without any need for special applications.

Maintenance

Software on the central processor may be updated by different connection methods such as TFTP and SNMP.

Software Features:

Calling from memory (general/individual)

Company Phonebook

Instant Messaging

Presence

QoS

sRTP/TLS / IP encryption

Alarm schedule

SNMP

Automatic calling

Warning the busy extension

Queuing

Busy external line

Busy extension

Missed Call

Call holding

Call parking

Call transfer

Executive secretary grouping

Conference

Conference room

Do not disturb

Flexible numbering

Call forwarding; all calls, in the night service, busy extension, missed call

Hotline

Information

Intervention

External line selection

External line to external line connection

Redial

Using passwords

Lock telephone

Call hunting

Music on hold

Reminder/wake-up service

Volume setting

Operation Features

Cost code input

Automatic external line holding

Automatic system check

Call restriction

Direct access to an extension

Different ring cadences

External call forwarding

Fax Forwarding

Least cost routing (LCR)

External line access groups

Extension authorization level

Automatic external line opening

Night Service

System query from the display

Equal load distribution for the operators

External line and extension connection in power failures

Remote programming

Remote system reset

External subscriber groups

Serial call transfer

System administrator

Intervention authorization control

Adjustable holding and parking times

Adjustable flashing time

MF/DP call

Technical Features

Calling line identification restriction (CLIR)

Called number identification (CDLP)

Connected line identification restriction (COLR)

Charging; start of call (AOC-S), during call (AOC-O), end of call (AOC-E)

Multiple subscriber numbering (MSN)

Direct dial-in (DDI)

Point-to-point connection

Point-to-multi-point connection

Displaying network messages

Enabling of the auxiliary processor board without interrupting the continuing calls when the main processor board is disabled (Hot-standby)

10/100 BaseT (Ethernet) Communication Speed : 100Mbps (Ethernet),

Applications and compliance: PABX, CO , RURAL, STP, SP, TANDEM, TRANSİT, TAFİCS / DSS1, EURO ISDN, Q-SIG, SS7, ISUP, MTP, CAS1B, CAS2B, R1, R2, 1VF

External Line Interface: EURO ISDN compatible T0 interface, EURO ISDN compatible S2 interface, IP VOIP Ethernet interface, E&M, TWT, E1-R2,

Dimensions:

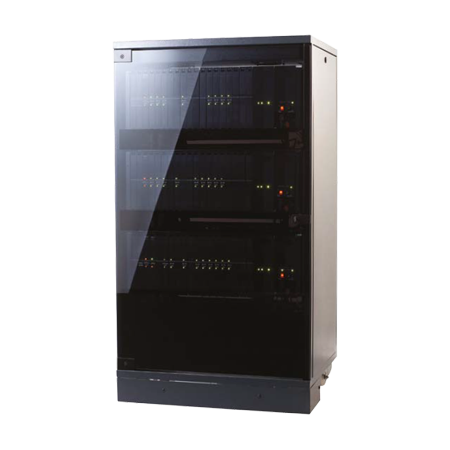

DS200L, DS200 IP: 70 x 32 x 28 cm, 78 x 153 x 60 (Cabinet)

DS200 IP 57 x 32 x 30 cm

DS200M IP: 44 x 26.5 x 26.5 cm

Hotel Specific Features

Hotel room extension identification

Check-in and check-out

Hotel room status (occupied, unoccupied, reserved)

Room monitoring (Clean, not clean, being cleaned)

Location specification service

Time restriction

Call authorization level

Minibar account

Wake-up service (Group or individual)
