MS38 Series Telephone Switchboards

image title

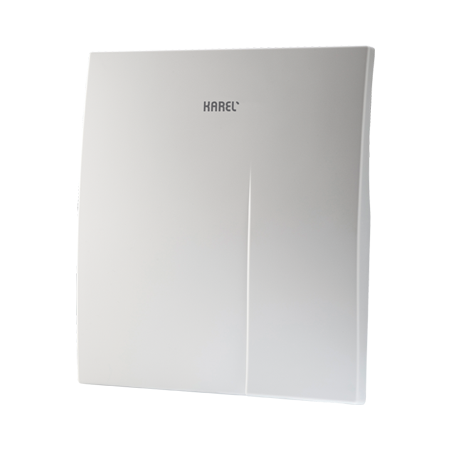

MS38 Series Telephone Switchboards

MS38 Series Telephone Switchboards, which offer special communication solutions for small-scale businesses, provide great convenience in communication. With 4 external lines/8 internal user capacities, you can benefit from more than 100 programmable usage features in the MS38 series.

image title

The MS38 series consists of MS38S and MS38C models with LCR technology that directs the communication process to the most economical tariff, allowing remote programming in service and maintenance services. Robot operator, voice message box, Net-CM Reporting software that allows the data produced during the communication process to be monitored on the computer screen, automatic fax forwarding are the prominent solutions in both models of the series.
The MS38C model has the ability to display the calling number (CID) on all extensions operating on lines supported by Türk Telekom, and battery connectivity that makes power outages a non-issue.

  • Details

    • Operation Features

      Hotline

      Intervention

      Music on hold

      Call transfer

      Call forwarding (internal or external)

      External Line to External Line Connection

      External line auto-answer

      External line authorization restriction

      Direct line

      Diaphone

      Direct access to an extension

      Direct dialing-in in power cut-offs

      Flexible night service

      Fax forwarding

      Delayed Hotline

      Real rate charging

      External music input

      Reminding service

      Extension/external line grouping

      Door opening

      Conference

      Warning the busy extension

      Common and individual memory

      Automatic calling

      Automatic external line control

      Programmable external line call time

      Do not disturb

      Line selection

      Serial transfer

      Queuing (extension/external line)

      Redial

      Encrypted locking

      Remote Programming

  • Solutions

    • Least cost routing (LCR) feature

      Accessing the extensions and leaving messages without interrupting the operator using the auto-attendant and voicemail features (optional)

      More productive and cost-efficient communication by monitoring the rate and time information on phone traffic with the computer monitor thanks to the Net-CM reporting software (optional)

      Usage of many PBX features rapidly and effectively by monitoring the key-in operations performed by the user on the phone from the computer monitor thanks to the Net-Console (CTI) software (optional)

      Communication with the door from any extension phone in the office and opening the door by entering a key in the phone with the diaphone unit (optional)

      Using numerous features of the PBX with the feature phone set (optional)

      By GSM terminals ensuring that calls made from phones connected to the PBX in the company to the mobile phones are charged with cheaper GSM call rates

      By Voip Gateway, lowering the communication costs of the companies by providing audio and fax communication over IP network

      Able to connect interfaces and the PBX to external devices such as printers, computers, radios, CD players etc.

      Thanks to GT SMS Server, allowing PCs which work with Karel GSM Gateway (FCT) products to receive by SMS, operator broadcast messages coming with SMS sending from the computers on the network that the PC running this software is connected to

  • Technical Features

    • Capacity: 4 external lines / 8 extensions + 1 diaphone channel

      Control:

      AM188ES Processor

      EPROM (1 Mbit)

      EEPROM (4 Kbyte)

      512 Kbit Static RAM Redundant with NiMh Battery

      Switching: Space Shared CMOS Crosspoint Switch

      Tones: Standard

      Supply: AC220V, 50-60 Hz

      Power Consumption: MS38S-C: 7 Watt at quiet

      Power: 230 VAC – 50 Hz

      Extension Connection: Circuit resistance including the phone set 1200 Ohm, Standard DP/DTMF phones, special set connectivity

      External Line Connection: DP/DTMF signalling, 12/16 kHz charging signal detection, polarity reversal detection (MS26S excluded)

      Interfaces: RS232, external music connection

      Ambient Conditions: 0 to 45 C° temperature, 20% to 80% uncondensed humidity

      Dimensions

      24,5 x 28.2 x 4.3 cm
