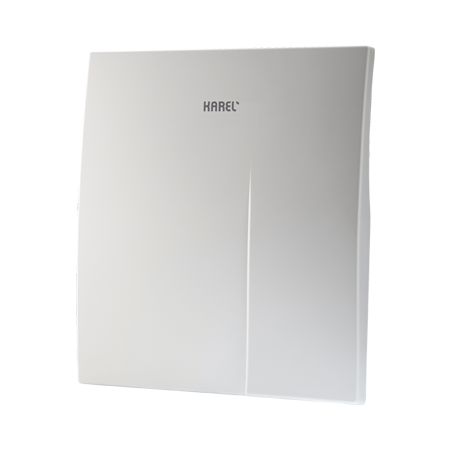

MS26 Series Small Business Telephone Switchboards

Differentiating Features of MS26IP

Capability to use the work phone as an extension anywhere with an internet connection at any time

System provides mobility and productivity in business life by means of its support for communication regardless of the location.

Savings as to the communication costs

Monitoring, recording and listening to conversation records as a feature supported by WebCM

Enable communication as a station subscriber by GSM phones to call an extension line by means of Karel Mobile application

Videophone, conference call and messaging facilities are enabled by means of software-based telephone and internet connection

Monitoring occupancy and status info of the subscribers,

Instant messaging support

Enabling videophone calls for all subscribers and external lines

High audio quality in IP calls thanks to QoS Support

Protected communication against all sorts of cyber attacks by means of KarelPort FrEN solution

Over 100 programmable usage features

Usage compliant with special phone sets and standard phones

Automatic fax forwarding

Door opening relay

Detection of polarity reversal and charging signal

Remotely accessible system maintenance and management

MS26S and MS26C Operation Features:

Intervention

Music on hold

Call transfer

Call forwarding (internal or external)

External Line to External Line Connection

External line authorization restriction

Direct line

Diaphone connection

Direct dialing-in in power cut-offs

Flexible night service

Fax forwarding

Real rate charging

External music input

Reminding service

Extension/external line grouping

Door opening

Conference

Warning the busy extension

Common and individual memory

Automatic calling

Automatic external line control

Programmable external line call time

Do not disturb

Line selection

Queuing (extension/external line)

Redial

Encrypted locking

Remote programming

MS26C model provides the following usage features additionally:

Hotline

Delayed Hotline

External line auto-answer

Direct access to an extension

Serial transfer

Benefits of MS26IP Switchboard for Businesses

Karel Mobil; MS26IP enables the smart phones, tablets or laptops to benefit from the system features as the subscribers of the system over 3G or WiFi networks by means of software-based phones and Karel Mobile. Direct conversation with extension line numbers can be realized even by the on the move employees.

Software Based Phone; SIP compliant IP telephone software utilized in computers, tablets and smart phones offers communication feasibility to the enterprises regardless of location by means of Karel YT500.

P DECT; Base stations provide wireless communication at every point of the coverage after being placed in proper locations where company data network or internet access is available via DECT devices.

Conferencing; Audio conference option is offered to analog subscribers whereas IP subscribers are provided with audio and visual conference with distanced locations options by means of videophones, software-based telephones and Karel Mobile application. As a consequence, time spent for meetings is shortened and costs are reduced.

Audio Recording and Automatic Call Forwarding; Usage of integrated EVM, 4-channel robot operator and voicemail services is available free of charge and without need to use an additional module in MS26IP station. The incoming calls are answered automatically by the robot operator without keeping the operator busy, the caller is connected to requested services by pressing the phone keys and message module enables message leaving. Thanks to the Conversation Recording Feature, the subscriber conversations on extension and external lines can be recorded.

Call Recording and Reporting Systems; With Web-CM and NetCM-Net Console, call tracking and reporting can be done thanks to web software that can be used anywhere and anytime over the internet.

Ease of Management and Maintenance; System's management and maintenance can be remotely controlled via internet irrespective of location.

MS26S and MS26C Common Solutions:

More productive and cost-efficient communication by monitoring the rate and time information on phone traffic with the computer monitor thanks to the Reporting software

Communication with the door from any extension phone in the office and opening the door by entering a key in the phone with the Diaphone connection unit

Ability to use the rich features of the switchboard with a special one touch telephone set

By GSM terminals ensuring that calls made from phones connected to the PBX in the company to the mobile phones are charged with cheaper GSM call rates

By Voip Gateway, lowering the communication costs of the companies by providing audio and fax communication over IP network

Able to connect interfaces and the PBX to external devices such as printers, computers, radios, CD players etc.

Thanks to GT SMS Server, allowing PCs which work with Karel GSM Gateway (FCT) products to receive by SMS, operator broadcast messages coming with SMS sending from the computers on the network that the PC running this software is connected to

Capacity: 2 External /6 internal lines and 1 intercom channel / with MS26IP + 4 IP external lines and 24 IP subscribers

Control: 80 °C 154 micro processor

Switching: Space Shared CMOS Crosspoint Switch

Tones: Standard

Supply: AC220V, 50-60 Hz

Power Consumption: MS26S-C: 5 Watt at quiet / MS26IP: 11 Watt at quiet

Extension Connection: Circuit resistance including the phone set 1200 Ohm, Standard DP/DTMF phones, special set connectivity

External Line Connection: DP/DTMF signalling, 12/16 kHz charging signal detection, polarity reversal detection (MS26S excluded)

Interfaces: RS232, external music connection

Ambient Conditions: 0 to 45 C° temperature, 20% to 80% uncondensed humidity

Dimensions

MS26: 24,5 x 28.2 x 4.3 cm
