IPH101 IP Hotel Wall Phone

image title

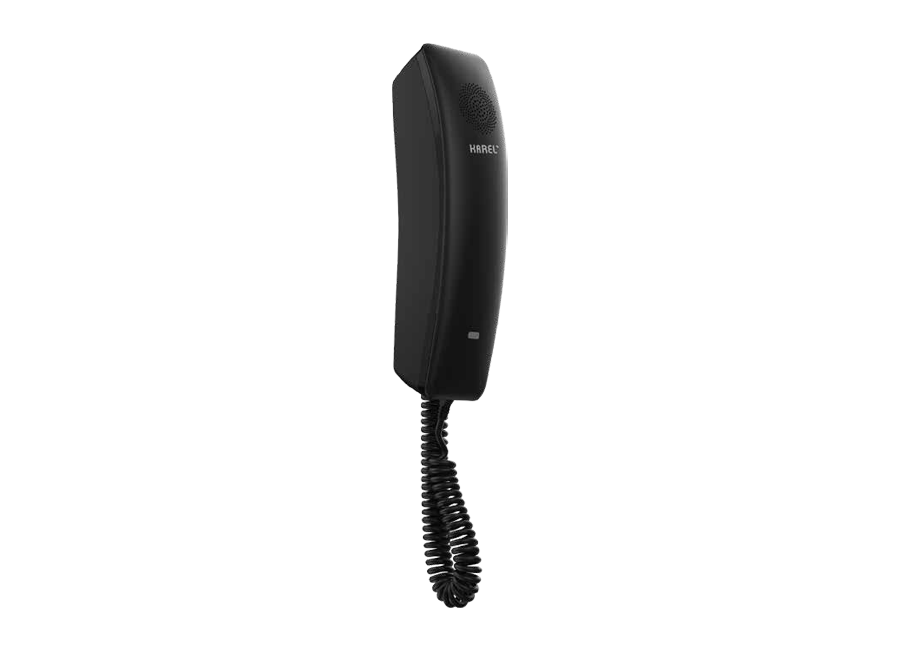

IPH101 IP Hotel Wall Phone

Karel IPH101 IP Hotel Wall Phone, available in black and white color options, offers practical, fast and quality solutions to communication needs in accommodation businesses. It supports PoE (Power over Ethernet) and two SIP trunks, and provides HD quality audio output from both the handset and handsfree speakerphone. Optionally, it is possible to use it in combination with an external adapter. The programmable DSS key allows users to enjoy a personalized user experience.

  • Features

    • Phone Functions

      • Call logs (In/Out/Missed, Max support

      600 records in the web)

      • Action URL / Active URI

      • Web dial

      • Dial plan

      • SIP Hotspot

      • Multicast

      • Direct IP dial

      Call Functions

      • Call out / Answer

      • Mute / Unmute

      • Hands-free / handset switched

      • Call Hold / Resume

      • Speed Dial

      • Redial

      • Auto-Answering

      • 3-way Conference

      • Hot Line

      • Customized ring

      • Main/Secondary SIP servers

      Audio

      • Narrowband Codec: G.711a/u, G.726, G.729A, iLBC

      • Wideband Codec: G.722, Opus

      • Acoustic Echo Canceller (AEC)

      • Voice Activity Detection (VAD) / Comfort, Noise Generation (CNG) / Background, Noise Estimation (BNE) / Noise Reduction (NR)

      • Packet Loss Concealment (PLC)

      • Dynamic Adaptive Jitter Buffer

      • DTMF: In-band, Out-of-Band – DTMF- Relay (RFC2833) / SIP INFO

  • Technical Features

    • Network

      • 10/100 Mbps Ethernet

      • IP Mode: IPv4/IPv6/IPv4&IPv6

      • IP Configuration: Static / DHCP / PPPoE

      • Network Access Control: 802.1x

      • VPN: L2TP / OpenVPN

      • VLAN: 802.1P/Q

      • QoS

      • RTCP-XR (RFC3611), VQ-RTCPX, R(RFC6035)

      • Firewall

      Protocols

      • SIP2.0 over UDP/TCP/TLS

      • RTP/RTCP/SRTP

      • STUN

      • DHCP

      • LLDP

      • CDP

      • PPPoE

      • 802.1x

      • SNTP

      • FTP/TFTP

      • HTTP/HTTPS

      • TR-069

      Deployment & Management

      • Auto-Provisioning via FTP/TFT/P/HTTP/HTTPS/DHCP OPT66/SIP/ PNP/TR-069

      • Web Management Portal

      • Accounts with Admin/Guest user levels

      • Web-based Packet Dump

      • Configuration Export / Import

      • Firmware Upgrade

      • Syslog

      • Web filter

      Physical Specifications

      • Keypad: 19 keys, including 12 Standard Phone Digits keys (0-9: Speed dial configuration on webpage), 3 Function keys (Hands-free , Redial ,Hold) and 3 Volume Control keys, Up/Down/Mute (with red color LED)

      • 1 DSS key

      • Status indicator (two-color LED) x1

      • HD Handset (RJ11) x1

      • Standard RJ11 Handset Cord x1

      • RJ11 Port x1

      • RJ45 Port x1

      • Power: 5V/2A or PoE

      • Power Consumption (PoE): 1.58W~3.47W

      • Power Consumption (Adapter): 0.87~2.23W

      • Working Temperature: 0~45˚

      • Working Humidity: 10~90%

      • Installation: Desktop/wall mount

      • Color: Black/white

      • Device Dimensions: 55.8 x 215 x 57.8mm
