FXO Series VoIP Analog Gateways

DAG1000 / DAG2000 Series VoIP analog gateways are low-cost, IP-based access solutions for small businesses, remote offices and branch offices. It works with the standard SIP protocol and is compatible with SIP-based IPPBX and network platforms.
The DAG FXO series provides high quality voice service over standard voice interfaces, enabling connection with traditional phone, fax and traditional analog PBX.

  • Benefits

    • Primary and secondary SIP account

      Flexible FXO port group setting

      IP trunk

      Flexible forwarding and manipulation

      Data/Audio/VLAN Management

      Audio and Fax support together

      Caller ID

      Automatic software/configuration update

  • Features

    • Physical Interface

      Phone Interface

      - DAG1000-4O: 4FXO, RJ-11

      - DAG1000-8O: 8FXO, RJ-11

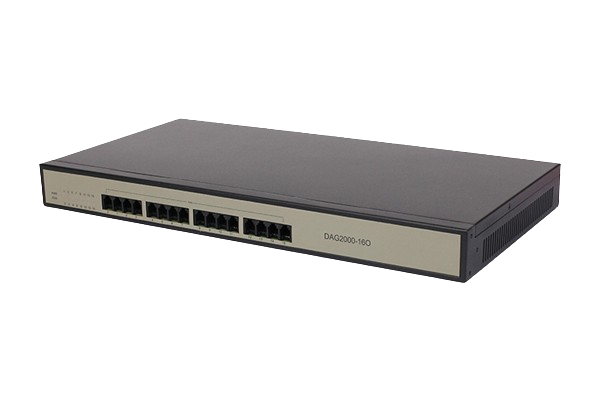

      - DAG2000-16O: 16FXO, RJ-11

      Ethernet Interface

      - 4*RJ-45 10/100 Base-Tx, RJ-45

      Audio & Fax

      G.711A/U law, G.723.1, G.729A/B

      Comfort Noise Generation(CNG)

      Voice Activity Detection(VAD)

      Echo Cancellation(G.168)

      Adaptive(Dynamic) Jitter Buffer

      Programmable Gain Control

      T.38/Pass-Through/Modem Fax mode (Up to 14.4kbps)

      DTMF mode: Signal/RFC2833/Inband

      Protocol

      SIP V2.0(RFC 3261,3262,3264)

      SDP(RFC 2327)

      REFER (RFC 3515)

      RTP/RTCP(RFC 1889,1890)

      STUN (RFC 3489)

      ARP/RARP(RFC 826/903)

      SNTP(RFC 2030)

      DHCP/PPPoE

      TFTP/HTTP/HTTPS

      DNS/DNS SRV(RFC 1706/RFC 2782)

      VLAN 802.1P/802.1Q

      Diff Serve

      Special Services

      LAN port IP prompt *158#

      WAN port IP prompt *159#

      IP address prompt *150*

      Restarting *111#

      Factory Settings *166*000000#

      FXO Features

      Detection of busy tone

      Detection of no current

      Detection of call abandonment

      Single-stage call

      Two-stage call

      Pulse dialing

      Opposite polarity

      FAS (Correction of Wrong Invoicing)

      Programmable DC/AC impedance

      Caller ID(Bellcore Type1&2, ETSI, DTMF)

      Maintenance and Update

      Web-based configuration

      Telnet configuration

      Data backup/reloading

      English and Chinese languages supported

      Firmware update with TFTP

      Ability to change passwords of Web and telnet

      Resetting of factory settings

      Automatic time synchronization

      IVR local maintenance management

      Physical Specifications

      Power Input: 100-240V, 50-60Hz, 1.2A Max

      - 4FXO output: 12VDC, 1A

      - 8FXO output: 12VDC, 2A

      - 16FXO output: 110-240VAC, 0.5A

      Power Consumption (W):

      - 4FXO:12;

      - 8FXO:20;

      - 16FXO:48

      Temperature (Operational): 0°~ 45°

      Temperature (Storage): 20°~80°

      Operating Humidity: 10%-90% (no condensation)

      Dimensions (W/D/H): 4/8FXO 242*152*40mm 1kg

      16FXO 442*280*44mm 3.0kg

      Network Specifications

      NAT (Route & Bridge)

      Static IP, PPPoE, DHCP

      DHCP server

      MAC address clone

      DMZ

      IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP, Ping, NTP, SNTP, Http, DNS, Tracert

      Static/dynamic ARP

      Call and Forwarding

      FXO port group

      IP trunk

      Primary and secondary SIP account

      32 incoming call forwarding

      32 outgoing call forwarding

      Number manipulation

      Call plan set

      Package Contents

      Gateway

      Power Adaptor

      RJ-45 Network Cable

      CD of Users Guide

  •
