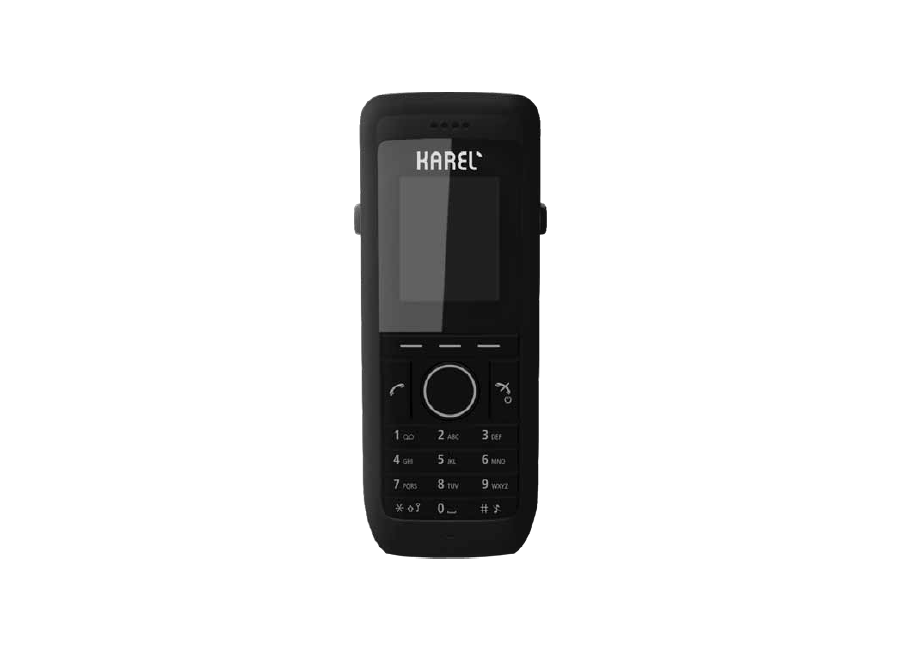

DE244 IP DECT Handheld Unit

image title

DE244 IP DECT Handheld Unit

Karel DE244 Handheld Unit, which works integrated with Karel DB211 IP DECT base stations, provides uninterrupted communication to mobile workers from anywhere at any time with its handover and roaming feature.

image title

Karel DE244 Handheld Unit, which offers communication between the switchboard and base stations over IP network, provides communication in DECT standard with its ergonomic design. The high-resolution, color and LED backlit 1.8-inch LCD display with LED backlighting helps mobile workers work comfortably.

  • Features

    • User Interface

      Display screen: High resolution, 262 K colors, 128 x 160 pixels LED backlit LCD display 28x35 mm (1.8 inch) TFT display

      Indicator: Illuminated display for charging and incoming calls

      Vibration: Shows incoming call

      Keys: 3 programmable keys, 4-axis directional key, on/off key, volume up/down key, number keys

      Audio

      Ringtone Level: 8 stages

      Earphone volume level: 8 stages (3dB each stage)

      Max. ringtone sound level 88 dBA@10cm

      Speaker: Duplex hands free function

      Language

      Supported Languages: Support for 18 languages (Turkish, English, German, French, Italian, Dutch, Danish, Danish, Norwegian, Portuguese, Spanish, Swedish, Czech, Greek, Hungarian, Polish, Russian, Slovak, Finnish) +1 installable

      Phonebook

      Local Phonebook (Personal): 48 characters name, 24 digits work number, 24 digits mobile number, 24 digits other numbers, assign ringtone to contact, 250 entries.

      Company Phonebook: 24 characters name, 24 digits number, 1 number for each entry, 1000 entries.

      Central Phonebook: 40 characters name, 20 digits number

      Phone

      Indicator: 14 different playback signals, vibration

      Call Answering: Normal (Open key) or auto-answer

      Call list capacity: Up to 25 outgoing, incoming and missed calls (with time information)

      Messaging*

      Maximum Message Length: 12

      Storage Capacity: 0

      Message Character Code: SMS Standard, Latin-1, UTF-8

      Bluetooth

      Bluetooth earphone support: NA

      Broadband audio

      Codec: G.722

      Connectors

      Connection: Standard 3.5mm earphone connector

      Radio

      Frequency Range: 1880-1900 MHz

      Modulation: GFSK

      Channel Range: 1.728 MHz

      Antenna: Internal, sensitivity -93dBm

      Power Radiation: 10mW

      Battery

      Type: Li-Ion(3.7V 650 mAh 2.40Wh)

      Talk duration: 16 hours (Optimum)

      Waiting Time: 180 hours (Optimum)

      Charging Time: < 4 h

      Charge/Discharge Cycle: 65% capacity efficiency after 500 full charge/discharge cycles Multi-purpose connector for charging, software download and configuration

      Ambient

      Operating Temperature: 0°C to +40°C

      Storing Temperature: -20°C to +60°C

      Protection Class: IP40, IEC EN60529

      ESD: 4kV contact discharge, 8kV air discharge (EN61000-4-2)

      Free Fall Test: IEC 60068-2-32, procedure 1 (12 times dropped from 1 meter) IEC 60068-2-32, procedure 2 (1000 times dropped from 0.5 meters)

      Physical

      Dimensions: 137x52x21,5mm

      Weight (excluding battery and clip): 114g

      Accessories

      Charging: Tabletop charging unit

      Clips: Hanging bracket

      *Must be used with a messaging server.
